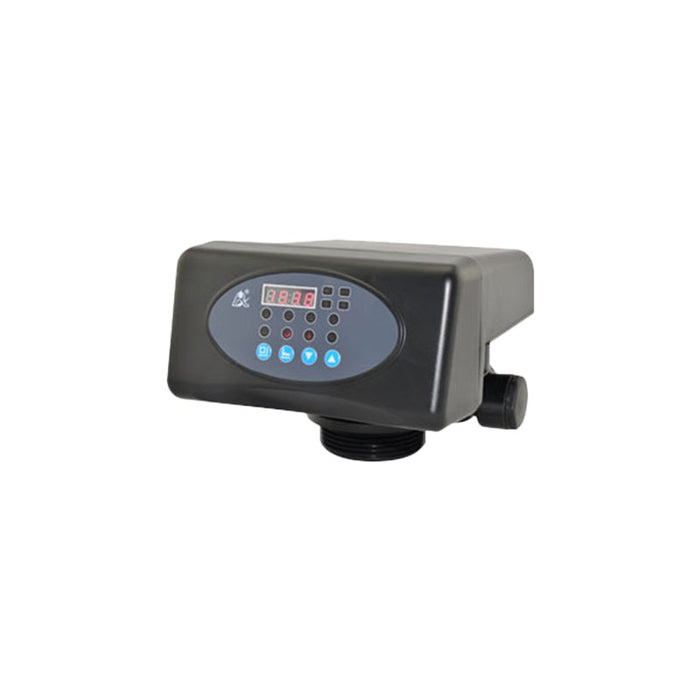

RUNXIN F65P3 Automatic Softener Valve

The RUNXIN F65P3 Automatic Softener Valve is a high-performance control head designed for water softener systems. Firstly, it supports flows of up to 2 m³/h (≈2 000 litres/hour) and fits ¾″ female inlet/outlet connections. Additionally, it offers automatic regeneration and an LED display for easy monitoring. As a result, system downtime is reduced, and manual intervention is minimized. Moreover, its built-in intelligence optimizes softener performance, ensuring consistent water softness.

Key Features

• Flow Capacity: Up to ~2 m³/h, supporting softener tanks from 6″ to 12″ diameter.
• Automatic Regeneration: Timed or volume-based regeneration maintains optimal resin performance. Consequently, the softener operates efficiently at all times.
• Durable Controls & Display: LED screen and integrated mainboard reduce wiring complexity.
• Robust Construction: Handles water pressure of 0.15–0.6 MPa and temperatures from 5 °C to 50 °C. Additionally, it works with standard brine line, drain, and riser tubing.
• Flexible Installation: Fits standard mounting sizes and allows top or side configurations for various softener tanks.

Technical Specifications

• Inlet / Outlet: ¾″ Female threads.
• Drain Port: ½″ Male threads.
• Brine Line Connector: ⅜″ Male threads.
• Operating Pressure: 0.15–0.6 MPa (≈1.5–6 bar).
• Operating Temperature: 5 °C–50 °C.
• Max Flow Rate: ~2 m³/h.
• Suitable Tank Size: 6″–12″ diameter vessels.

Applications & Benefits

This automatic softener valve is ideal for commercial or industrial water softener systems. For example, it ensures automatic control and consistent regeneration. Furthermore, it protects downstream equipment from scale buildup, prolonging the lifespan of your system. Therefore, it reduces labor costs while maintaining reliable operation.

Installation & Maintenance Tips

1. Choose a vessel that matches the valve’s flow capacity and tank size (6″–12″ recommended).
2. Perform water hardness and flow‑rate tests to size correctly.
3. Mount the valve securely on the softener tank and connect brine, drain, and feed lines using correct fittings.
4. Program regeneration settings (time or volume) according to usage patterns.
5. Maintain by checking the electrical supply (DC12V, 1.5A) and verifying that regeneration cycles complete correctly. Replace any worn seals or gaskets to keep operation smooth and leak‑free.
