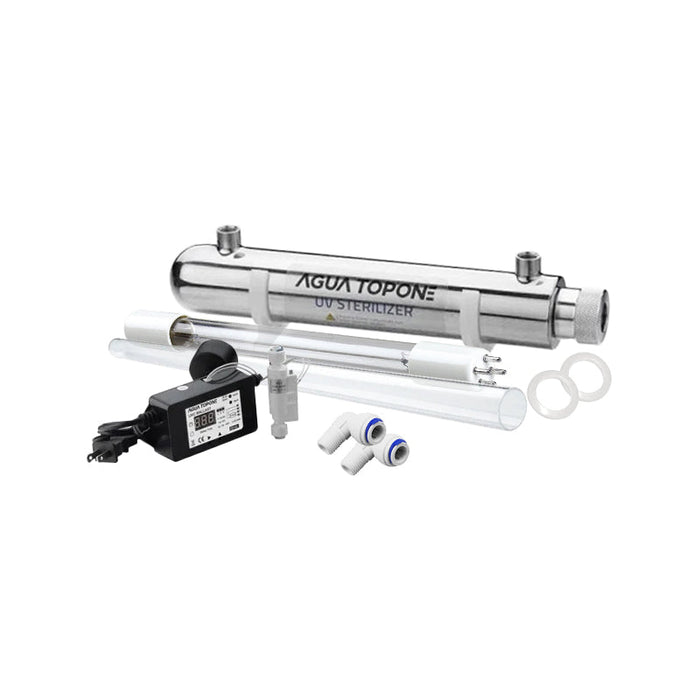

Agua Topone YS Series UV Sterilizer With Flow Sensor

Agua Topone YS Series UV Sterilizer with Flow Sensor

The Agua Topone YS Series UV Sterilizer with Flow Sensor offers advanced ultraviolet water disinfection, ensuring safe and clean water for various applications. Additionally, its integrated flow sensor and adjustable delay timer enhance efficiency and prolong the lifespan of the UV lamp.

Key Features & Benefits

• Chemical-Free Disinfection: Utilizes 254nm UV light to deactivate microorganisms without the need for chemicals.
• Automatic Operation: The UV lamp activates only when water is flowing, conserving energy and reducing wear.
• Adjustable Delay Timer: The built-in delay timer can be set from 0 to 999 seconds, allowing customization based on system requirements.
• Long UV Lamp Life: Designed to extend the UV lamp’s lifespan to over 20,000 hours, reducing maintenance costs.
• High-Quality Construction: Made with durable materials to withstand various environmental conditions.

Technical Specifications

• UV Lamp: 254nm wavelength
• Flow Sensor: Integrated with adjustable delay timer (0–999 seconds)
• Maximum Operating Pressure: 8 bar (116 psi)
• Ambient Water Temperature: 2–40°C (36–104°F)
• Water Quality Requirements:
  • Iron: <0.3 ppm
  • Hardness: <7 gpg (120 mg/L)
  • Turbidity: <1 NTU
  • UV Transmittance: >75%
• Lamp Life: Over 20,000 hours
• Material: Stainless steel housing
• Certifications: CE, RoHS compliant

Applications

The Agua Topone YS Series UV Sterilizer with Flow Sensor is ideal for:

• Residential water purification systems
• Commercial and industrial water treatment applications
• Pre-treatment for reverse osmosis (RO) systems
• Agricultural water disinfection
• Aquaculture and fish farming operations

Usage Notes

• Installation: Ensure proper installation according to the manufacturer’s guidelines to maintain optimal performance.
• Maintenance: Regularly clean the quartz sleeve and replace the UV lamp as recommended to ensure effective disinfection.
• Monitoring: Periodically check the flow sensor and delay timer settings to ensure they are functioning correctly.
